Plastic control station for control and signalling units Ø 22 from the Harmony® XB5 range
Description
These control stations are suitable for most common functions:
start, stop, start-stop, emergency stop.
Complete stations, ready to use:
Stations for customer assembly, in order to meet specific requirements:
Applications
These control stations are suitable for most common functions:
start, stop, start-stop, emergency stop.
Complete stations, ready to use:
- XALD: complete stations are fitted with 1, 2 or 3 Ø 22 mm control and
signalling units from the Harmony® XB5 range - XALK: complete stations for emergency stop function (1 mushroom head pushbutton)

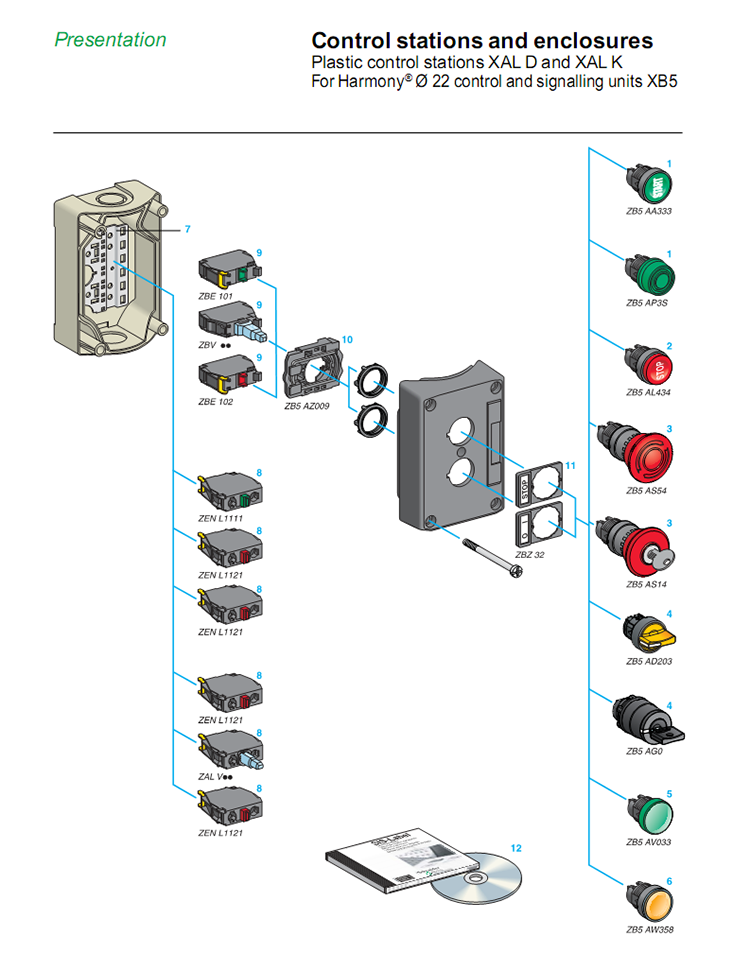

Stations for customer assembly, in order to meet specific requirements:
- Empty enclosures with 1, 2 ,3, 4 or 5 cut-outs for user fitting of
Harmony® XB5 units - Conformity with IEC, UL, CSA standards
- CE marking
- IP 65, NEMA 4 dust and damp proofing
- ”Protected LED” illuminated lens units
- Low-load electrical contact
- Screw clamp connection, pins for printed circuit
- Industry: food and beverage, chemical industry, paper mill, marine applications
- Service sector and infrastructure: energy distribution panel builders, food and beverage, car washes
